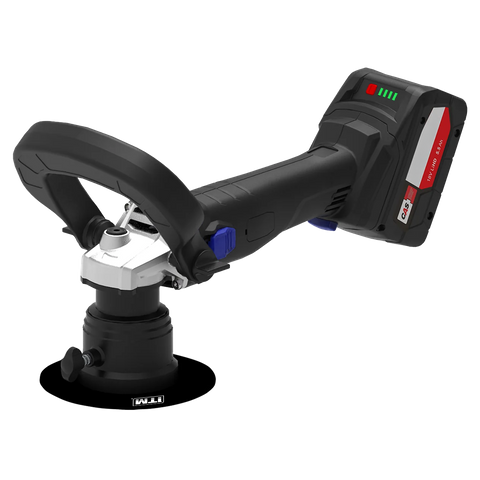

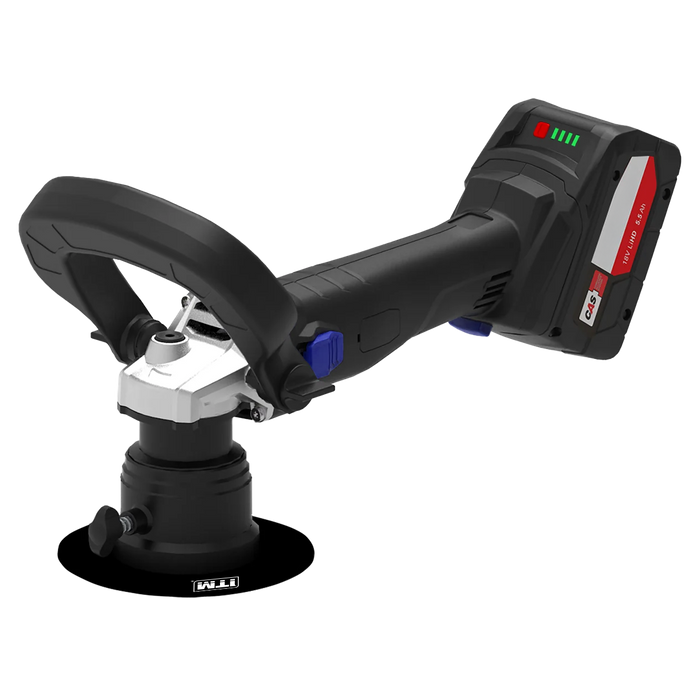

ITM BM6 18V CORDLESS BEVELLER, EXCLUDES BATTERY AND CHARGER
Stock Locations
-
Brisbane:In Stock
-
Melbourne:Out of Stock
-
Perth:Out of Stock
-
Tasmania:Out of Stock
Our Brands
Features
Battery-powered, compact and lightweight machine produces bevels up to 6 mm wide on plates, pipes and contours. The BM-6 Battery is also the perfect solution for rounding off radius R2, R3, R4, R5 on metal structures before painting to prevent rust build-up on sharp edges. It offers greater flexibility and portability without the risk of tripping over or tangling a supply cable and is ideal for working outdoors in remote areas where no power supply is available. To extend the working time, BM-6 Battery is supplied with 2 rechargeable CAS batteries.
- Continuous bevel width adjustment up to 6 mm at 45 degrees (30 degrees – option)
- Creates a perfect radius R2, R3, R4 or R5 in just one pass, saving time & money over conventional grinding methods
- Ideal for use in the field – no need for mains power and no cable to carry around
- Conveniently powered by an 18-volt DC battery, the same CAS battery as other cordless ITM machines
- The LiHD battery ensures maximum power availability
- Single 45-degree milling head for both radius and V bevels
- Countersinking of holes with a minimum diameter of 40 mm
- Overload protection to prevent motor damage
- 2 years of warranty
Specifications
Voltage: 18 V DC
Power: 900 W
Spindle speed (without load): 7800 rpm
Maximum bevel width: 6 mm (15/64")
Bevel angle (depends on the milling head): 45° or 30°
Minimal diameter of countersinking: 40 mm (1-9/16”)
Minimum workpiece thickness: 4 mm (5/32”)
Rounding edges: R2, R3, R4, R5
Dimensions (L x W x H): 339 mm x 135 mm x 319 mm
Weight (incl. milling head): 3.7 kg (8.2 lbs)
