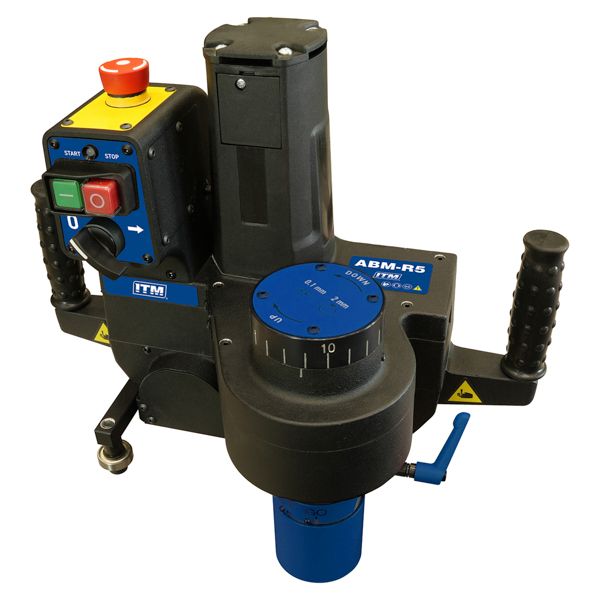

ITM ABM-R5 AUTO FEED RADIUS BEVELLING MACHINE, MAXIMUM BEVEL R5
Stock Code:
WA-ABMR5
Stock Locations
-
Brisbane:Out of Stock
-
Melbourne:Out of Stock
-
Perth:Out of Stock
-
Tasmania:Out of Stock
RRP:
$7,995.00
Our Brands
Features
WA-ABMR5 is a compact, self propelled auto feed beveler designed for precise edge rounding and bevelling on upper and bottom edges of steel plates and profiles.
The machine produces R2–R5 radius or straight bevels in a single pass on both upper and bottom edges, delivering consistent quality without thermal distortion or guide tracks.
- Auto feed 4 wheel magnetic drive ensures stable, track free travel with a constant feed speed of up to 2.0 m/min, even on long steel plates and profiles
- Single pass radius milling (R2, R3, R4 or R5) on upper and bottom edges significantly reduces machining time compared to conventional grinding
- Straight bevelling up to 6 mm at 45° (standard) and 30° (option) provides flexibility for weld preparation and edge finishing on one compact machine
- Bottom edge machining capability (option) allows complete edge processing without re clamping or turning the material to the other side
- High precision milling head adjustment (0.1 mm) ensures accurate, repeatable radius and bevel geometry
- Smart overload control system dynamically adjusts feed speed under load, protecting cutting inserts and maintaining consistent surface quality
- Automatic stop and tool retraction at the end of the cut prevents insert damage and increases operator safety
- No heat affected zone thanks to cold milling technology, eliminating material distortion and post processing
- Compact and lightweight industrial design (14 kg) enables easy handling while maintaining production grade performance
- Chip blowing system clears chips from the machining path, improves surface quality and reduces wear of the guide wheels
Specifications
- Voltage: 1~ 220-240 V, 50-60 Hz / 1~ 110-120 V, 50-60 Hz
- Power: 1080 W
- Spindle speed (without load): 5900 rpm
- Spindle speed (with load): 3950 rpm
- Feed speed: 2.0 m/min
- Maximum bevel width: 6 mm
- Bevel angle on the upper edge: 45°; 30° (option);
- Bevel angle on the bottom edge: 45° only
- Minimum plate thickness: 8 mm
- Maximum plate thickness (for the bottom edge bevelling): 30 mm
- Minimum workpiece width: 150 mm
- Rounding edges (both upper and bottom edges): R2, R3, R4, R5; 2 mm, 3 mm, 4 mm, 5 mm
- Dimensions (L x W x H): 408 x 235 x 355 mm
- Weight: 14.0 kg
