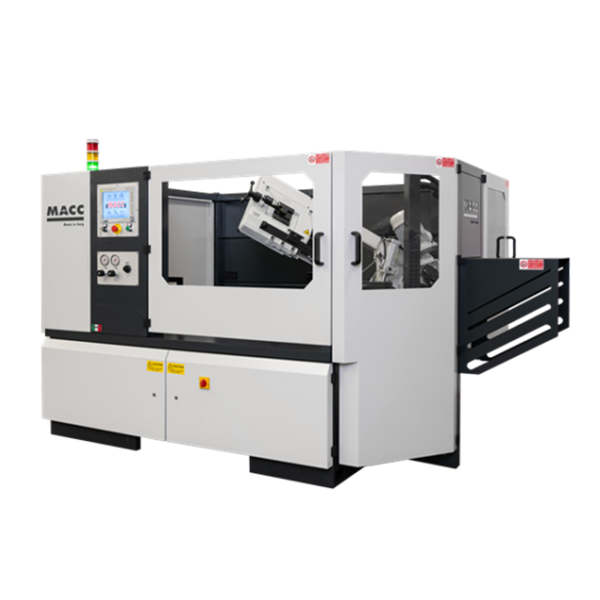

MACC BANDSAW, AUTO SWIVEL, WITH TOUCH SCREEN CONTROL PANEL, AUTO & MANUAL, 300MM CAP, FULLY GUARDED, 415V 3PH
Stock Code:
MB-411AGA-3
Stock Locations
-
Brisbane:Out of Stock
-
Melbourne:Out of Stock
-
Perth:Out of Stock
-
Tasmania:Out of Stock
RRP:
$79,990.00
Our Brands
Features
- Automatic CNC hydraulic bandsaw for programmable 45° left and 60° right cuts, complying with all CE safety regulations
- 10” touch screen tool for fully automated machine management with bar optimisation
- Movement of the feed carriage with recirculating ball screw controlled by brushless motor without length limit
- Tilting descent on pivot with adjustable conical bearings
- Appropriately sized flywheels
- Safety devices installed on all points of access to the machine
- Hydraulic control unit with cutting pressure adjustment
- Separate pressure adjustment of the clamps
- The blade is tensioned by manually turning the handwheel
- Two-metal band 3200 x 27 x 0.9 mm
- Cutting thickness 1.4 mm
- Material feed stroke 1000 mm
- 0.75 kW hydraulic control unit motor
- 0.09 kW band cooling electric pump
- Semi-automatic cutting option.
- Blade speed inverter from 0 to 90 m/1’
Specifications
| Motor | 3hp Three Phase (415V) | ||
| Blade Speed | Variable 0–90 mpm | ||
| Blade Size | 27mm x 0.9mm x 3200mm | ||
| Weight | 1410kg | ||
| Cutting Capacity | |||
|---|---|---|---|
| Cutting Angle | Round | Square | Rectangle |
| 90° | 300mm | 280mm | 280 x 300mm |
| 45° Left | 180mm | 160mm | 110 x 180mm |
| 45° Right | 225mm | 215mm | 130 x 225mm |
| 60° Right | 140mm | 140mm | 140 x 140mm |
