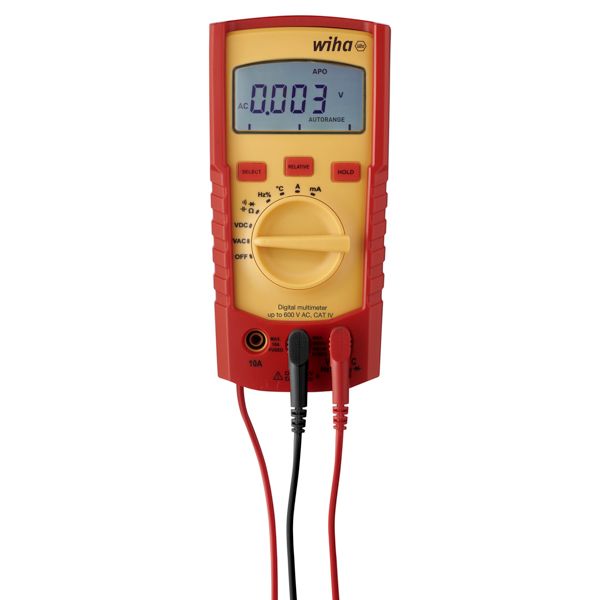

WIHA DIGITAL MULTIMETER UP TO 600 V AC, CAT IV
Stock Locations
-
Brisbane:Out of Stock
-
Melbourne:Out of Stock
-
Perth:Out of Stock
-
Tasmania:Out of Stock
Our Brands
Features
The digital multimeter from Wiha optimally equips you for a wide variety of measurements. This single tool can be used to make voltage, current, resistance, frequency, capacity, and temperature measurements. In addition, continuity and diode tests are also possible. A large LCD display makes the measurement results immediately readable even beyond the measurement process. An additional signal sound indicates the current flow during the continuity check. Thanks to the automatic measuring range selection, the manual pre-selection of specific measurement ranges is no longer required. The relative value measurement offers another advantage. The storage of previous measurement values and their comparison to future measurement results allows a variety of control options.
- Measures AC/DC Voltage & Current
- Capacitance, Frequency & Resistance Testing
- Continuity & Diode Testing Functions
- Automatic Measurement Range Selection
- Large LCD Display For Easy Reading
- Relative Value Measurement Function
- Integrated Continuity Signal Sound
- Current Measurement 600µA - 10A
- Temperature Measurement Capability
- CAT III 600V / CAT IV 300V Rated
Specifications
| Voltage Range AC/DC | 0-600V |
| Current Range AC/DC | 600µA-10A |
| Resistance Range | 40MΩ |
| Frequency Range | 5MHz |
| Capacitance Range | 100nF |
| Display Count | 4,000 Digits |
| Measurement Category | CAT III 600V / CAT IV 300V |
| Protection Rating | IP40 |
| Temperature Range | -20°C To 500°C |
| Battery Type | 2x AAA Batteries |
| Overall Length | 150mm |
| Weight | 640g |
| Standards | IEC/EN 61010-1, IEC/EN 61010-2-033, IEC/EN 61010-031 |
