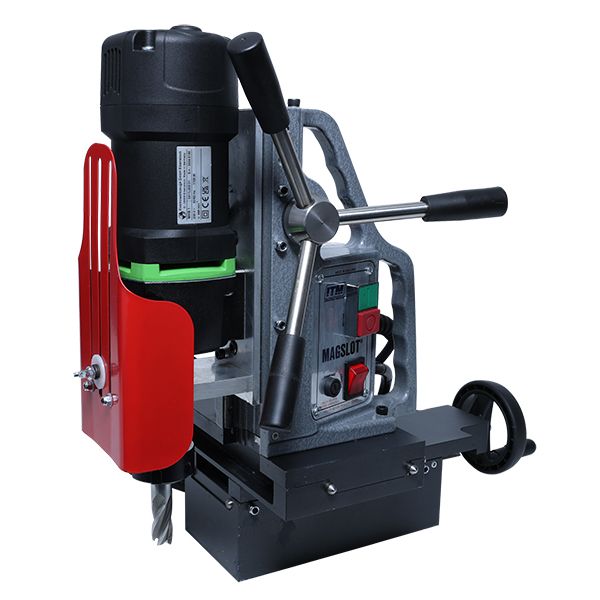

HOLEMAKER MAGSLOT X-Y MILLING MAGNETIC BASE DRILL, X-Y MOVEMENT, 240V
Stock Code:
HMMS-20XY
Stock Locations
-
Brisbane:In Stock
-
Melbourne:Out of Stock
-
Perth:Out of Stock
-
Tasmania:Out of Stock
RRP:
$13,490.00
Features
- Dual-axis feed, allowing 115 mm of milling travel per operation in both axis. With patented slide rails to ensure minimal vibration and steady cut.
- Weighs only 24 kg. Making it portable and convenient to bring to the workpiece in any position.
- Integrally fixed Milling collet chuck (size ER32). Conveniently accepts end mills between M3-M20 Ø.
- Optional additional 19 mm shank Annular broach cutter holder. Converts machine to a magnetic drill to cut round holes up to 40 mm Ø.
- Lockable downward motor slide. Fixes the milling tool to desired depth
Specifications
- Weight: 24 Kg
- Motor: 1100W
- RPM: 720 RPM (no load) 450 RPM (with load)
- Length / Width: 420 mm x 70 mm (including Spoke handles)
- Magnet Deadlift: 2500 kg on 1" Plate
- Vibration Level: < 2.5 m/s2
- Endmill Cutter Range: M3 - M20
- Milling Chuck Type: ER32
- Maximum Vertical Travel: 190 mm
- Maximum Core Cutter Capacity* (Optional Extra): 20 mm Ø
- Maximum Horizontal (Slot) Feed in One Pass: 115 mm
